Description and technical data

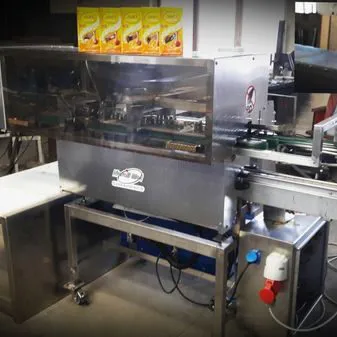

The equipment is intended for paper bags or glazed packs with a width from 60-120 mm (wider widths are also possible) and a depth of 40-70 mm and more, without a feeding conveyor. The minimum height depends on the bag filling, adding 100 mm for broaching and wrapping. Maximum height without a feeding conveyor is up to 350 mm.
Technical data
| Dimensions | Length ~2500 mm, width ~1000 mm, height ~1500 mm |
|---|---|
| Working height | 1150 mm |
| Output | Up to 60 packs per minute |
| Motors | 2 pcs |
| Conveying | Conveyor belts |
| Frequency converter | EMERSON UNIDRIVE M200 |
| Optical sensor | S51-PA-2-B01-PK |
| Sealer | HB 5010, Buhnen Klebesystem |
| Total electric power consumption | 3.5 kW |
